October 5, 2014

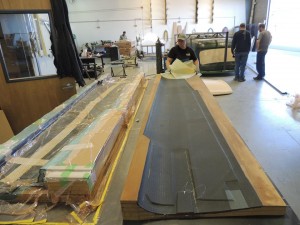

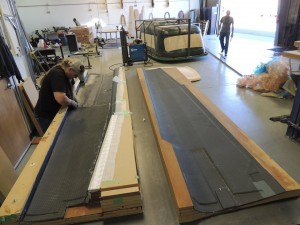

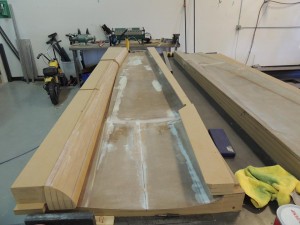

After finishing the flaps, we have moved on to the main wing.  The left main wing skin molds have been carved, along with the fixtures for holding parts in place for later assembly.  Below is seen the molds nearly ready for laying in the carbon fiber and core material.  This is probably the single largest piece of the aircraft, being over ten feet long each.  The body is larger but is in several pieces (we have replaceable nose and tail in case of an accident while driving).

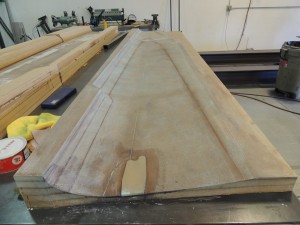

When the wing skins were completed, the parts were laid up and put into the oven for curing.  The oven ensures the composite material is completely hardened, and readies the parts for assembly.  There is trimming after the part comes out of the mold, but little else to prepare it until it is time for the adhesive application of other parts.  Below are images of the left wing skins just out of the oven.

The right wing skins followed the left wing skins, and below you can see the wing molds in a nearly completed condition.  They have since been finished, and just recently the right skin parts have been completed.  The spar, or main beam, is next on the list, and is a C-shaped beam that runs the length of the wing, with an secondary spar that runs just over half the length of the wing to stiffen the section of the wing closest to the body.

If you haven’t read it already, here is the newest article published about the Switchblade. http://www.bendbulletin.com/localstate/2402245-151/flying-car-nearly-ready-for-takeoff?entryType=0#

Samson made the news once again, this time on KTVZ in Bend, Oregon!

The plan is still to assemble the left wing completely, add the new custom metal hinges and attachments, and put it onto a jig or metal construct to hold the wing, allowing us to move it in and out, as it would extending or retracting into the Switchblade.  We will check tolerance and clearance in real life, and then probably have a party!  Finishing the wings will be equivalent to about one quarter of the build of the vehicle.
