Update – November 6, 2019

November 6, 2019

VALIDATING PIN-OUTS FOR ENGINE COMPONENTS – November 6, 2019

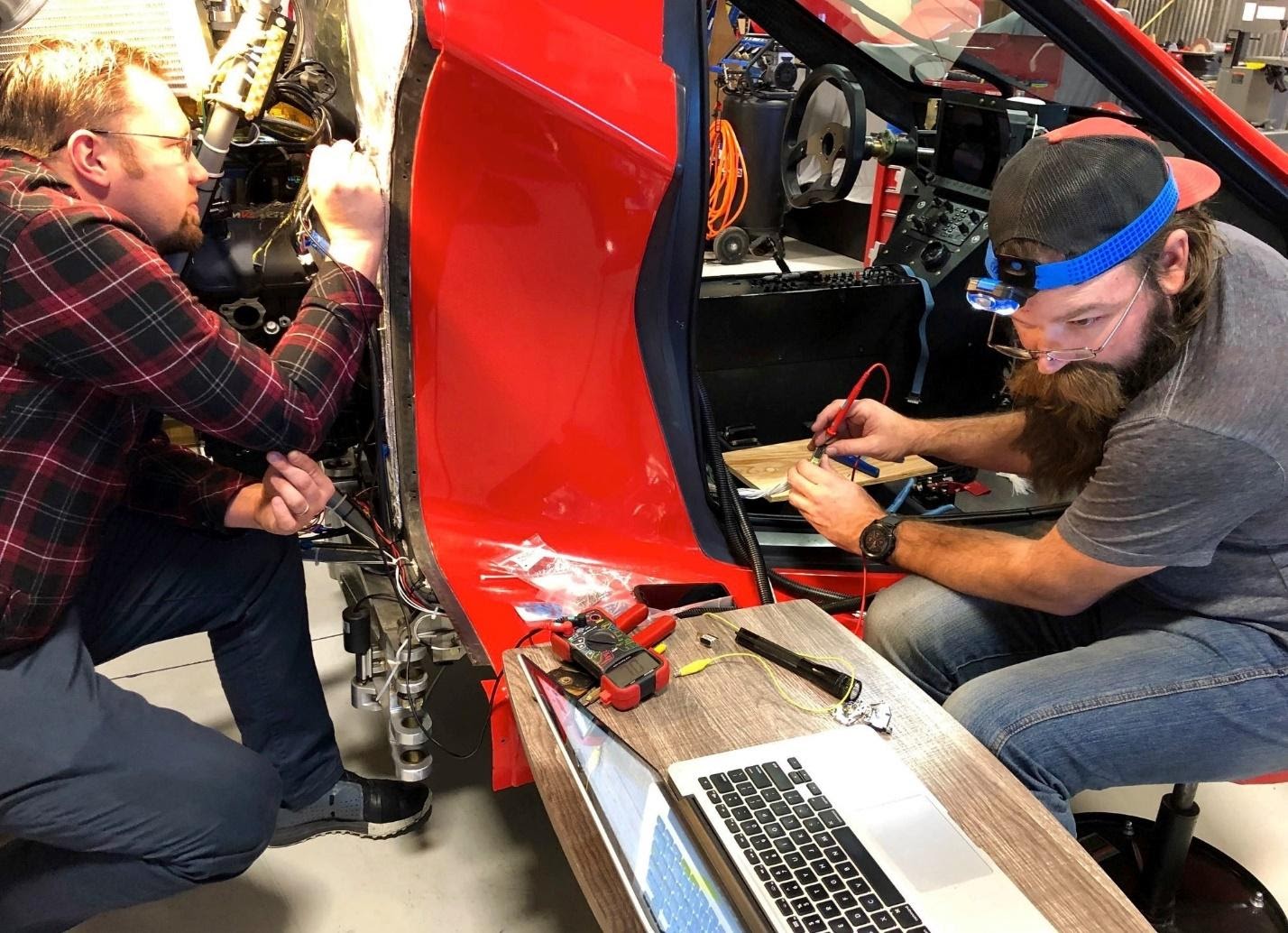

Sean Bliss (left) and Phillip Mikula are doing some excellent teamwork validating the pin-outs for the engine computers. In electronics, a pin-out is a cross-reference between the contacts, or pins, of an electrical connector or electronic component, and their functions. Phillip calls out a pin number and Sean holds the end of the multi-meter on the pin to verify the correct location of the opposing pin.
